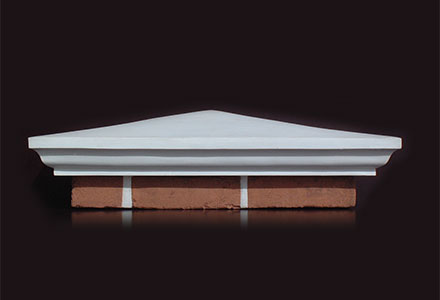

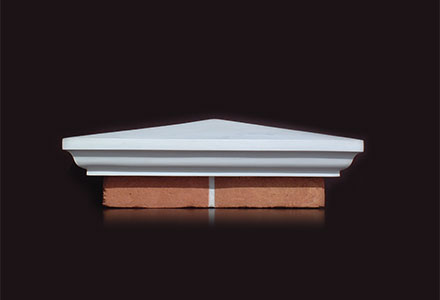

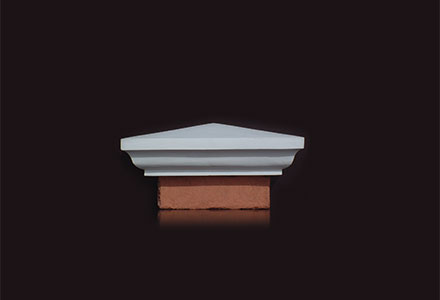

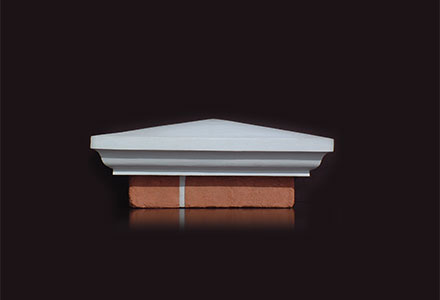

Pier Caps - Moulded Range

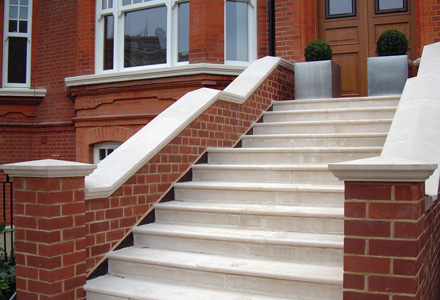

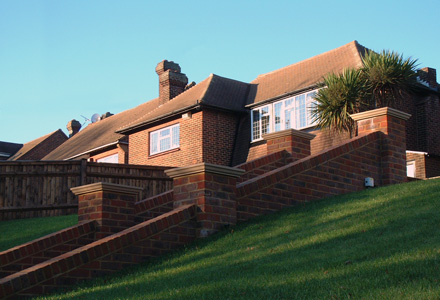

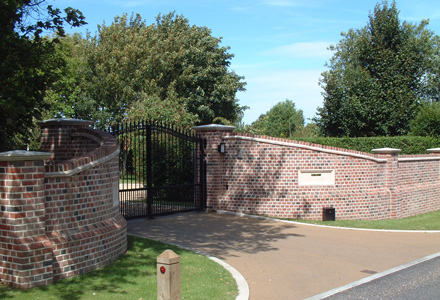

This attractive style of pier cap has proved very popular on 'new build' developments as the range will suit brick piers from 1 brick square upto 3 bricks square.
The range also includes caps which fit oblong piers. Additionally, the caps have the same moulded profile as the TW07 & TW08 copings which can be used to cap 215mm & 325mm walls respectively.
CAD drawings of these caps are available in 2D & 3D from the top of this page.
| Moulded Cap | To Fit Pier Sizes | To Fit Brick Sizes | Weight Kgs |
|---|---|---|---|
| M.CAP 1 | 215mm x 215mm | 1 Brick Square | 17kg |
| M.CAP 2 | 325mm x 325mm | 1 1/2 Bricks Square | 34kg |
| M.CAP 3 | 445mm x 445mm | 2 Bricks Square | 55kg |
| M.CAP 4 | 550mm x 550mm | 2 1/2 Bricks Square | 88kg |
| M.CAP 5 | 665mm x 665mm | 3 Bricks Square | 125kg |
| M.CAP 2/3 | 325mm x 445mm | 1 1/2 Bricks x 2 Bricks | 45kg |
| M.CAP 2/4 | 325mm x 550mm | 1 1/2 Bricks x 2 1/2 Bricks | 61kg |
| M.CAP 3/4 | 445mm x 550mm | 2 Bricks x 2 1/2 Bricks | 72kg |
